Display
15.6” FHD (1920 x1080)
Optional 1000 nits DynaVue® sunlight readable display

Operating System
Windows® 11 Pro 64-bit

Processors
Intel® Core™ i7-1255U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores)
Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)

Memory
2 slots 8GB up to 64GB (4800 MHz DDR5)

Storage
256GB NVMe PCIe SSD
Optional 512GB/1TB/2TB PCIe SSD
Optional 2nd storage M.2 SATA or NVMe PCIe SSD
Optional 3rd storage M.2 SATA SSD

Graphics
Intel® Iris® Xe Graphics
Intel® UHD Graphics
Optional NVIDIA® RTX A5001

Camera
Optional integrated 2.0MP web-cam
Optional 5.0MP IR camera for Windows Hello

Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls

Media Bay
(One Option Only)
Optional DVD super multi
Optional 3rd SSD
Optional ExpressCard 54

Expansion Box
Optional discrete VGA
Optional 2nd RJ45 x 1 + 2nd RS232 x 1

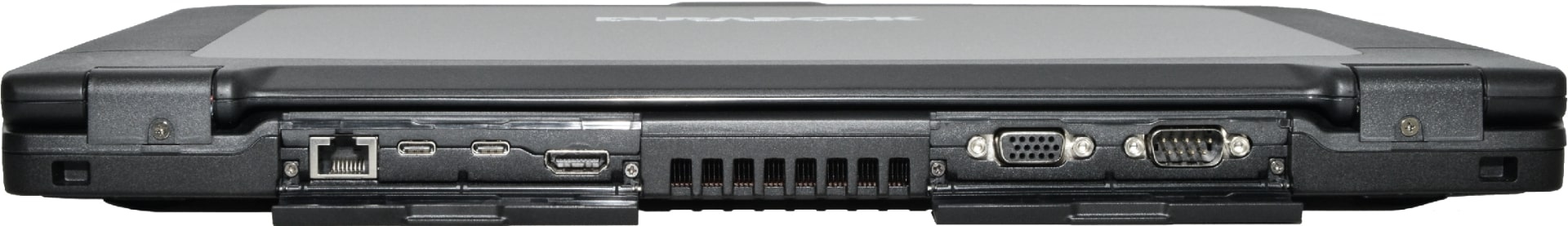

I/O Ports
Thunderbolt 4 x 1
USB 3.2 Gen2 (type A) x 2
USB 3.2 Gen2 (type C) x 1 (support DP)
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 1
VGA port (D-sub, 15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232, RS422 and RS485: D-sub, 9-pin) x 1
Nano SIM card x 1
DC-In jack x 1
Optional docking connector (41-pin Pogo) x 1
Optional smart card reader x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN

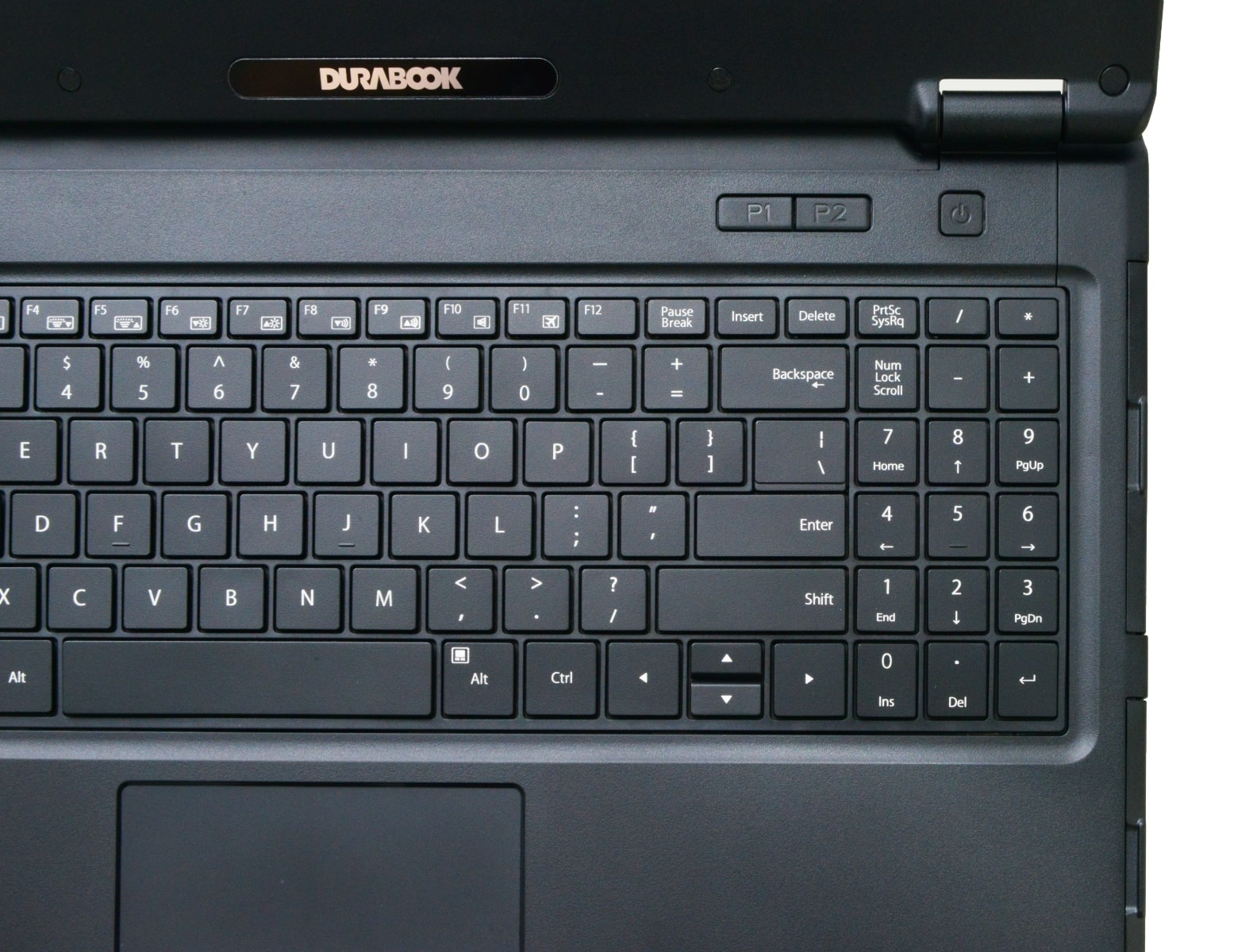

Keyboard & Input
2 user-definable keys (P1/P2)
Standard membrane keyboard with numeric keypad and optional LED backlight

Wireless & Communications
Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 6E AX211 (802.11ax)
Bluetooth® V5.3
Optional GPS and 4G LTE multi-carrier mobile broadband
Optional 5G
Optional RF antenna pass-through for GPS, WWAN, and WLAN

Security
Intel® vPro™ Technology
Secured-core PC
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington lock
Optional smart card reader
Optional Windows Hello
Optional fingerprint scanner
Optional night vision mode
Optional LF/HF-RFID (NFC) reader

Power
AC adapter: 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery: Li-Ion, 7.4V, 7600mAh, 12 hours
Optional bridge battery: 5 minutes swap time

Dimension & Weight
375 mm (L) x 273 mm (W) x 29.5 mm (H)
2.6 kg

Warranty
3-year limited warranty standard
