CZ:
ARCTIC P14 PWM PST A-RGB
Semipasivní 140mm ventilátor do skříně s digitálním A-RGB podsvícením v bílé barvě
Adresovatelný RGB pro plnou kontrolu barev
Ventilátor P14 PWM PST A-RGB má v centrálním kole ventilátoru 12 digitálních A-RGB LED diod. Ty lze ovládat nezávisle na sobě a jsou kompatibilní s běžnými standardy A-RGB předních výrobců základních desek. Ventilátor lze tak plně osvětlit přímo přes konektor A-RGB na základní desce nebo přes externí ovladač a synchronizovat s osvětlením ostatního hardwaru.
Partner společnosti ARCTIC, společnost SignalRGB, nabízí komplexní řešení pro synchronizaci a individuální konfiguraci osvětlení.
Režim 0 dB — Nulové otáčky
Otáčky ventilátoru lze pomocí PWM snížit až do úplného zastavení. To umožňuje tichý provoz v režimu volnoběhu a zároveň zaručuje maximální výkon, když je to potřeba.
Maximální hladkost, minimální vibrace
Provozní hluk nově vyvinutého motoru ARCTIC je sotva znatelný i při nejnižších otáčkách. P14 PWM PST A-RGB má navíc pogumované kontaktní plochy, a tím minimalizuje slyšitelné vibrace.
Optimalizováno pro vysoký statický tlak
Ventilátor P14 PWM PST A-RGB pracuje s cíleným prouděním vzduchu a vysokým statickým tlakem. Díky tomu zaručuje extrémně efektivní chlazení i při zvýšeném odporu vzduchu, a je proto vhodný pro použití na chladičích, radiátorech a filtrech.
200 až 1900 ot/min Řízeno pomocí PWM PST
Díky širokému rozsahu otáček a inovativní technologii PWM Sharing Technology (PST) lze otáčky ventilátoru desky P14 PWM PST A-RGB řídit synchronně se všemi ostatními ventilátory. Tím se minimalizuje hluk a zároveň je zaručen maximální chladicí výkon.
Vysoce kvalitní ložisko
Díky kombinaci slitiny a maziva vyvinuté v Německu se snižuje tření v ložisku a dosahuje se vyšší účinnosti. Tímto způsobem se vyvíjí méně tepla, vzniká méně hluku v ložisku a prodlužuje se životnost ventilátoru.
Kvalita, na kterou se můžete spolehnout
Abychom zajistili dlouhou životnost našich produktů, provádíme dlouhodobé testy za různých, někdy i velmi nepříznivých podmínek. Tímto způsobem se učíme, jak můžeme naše produkty pro naše zákazníky trvale vylepšovat. Vynikající výsledky dlouhodobých testů nám navíc dávají jistotu, že naše produkty jsou vynikající nejen z hlediska kvality, ale také z hlediska odolnosti.
Obecné specifikace¨
Výkon
Rychlost ventilátoru: Řízení PWM 200—1900 ot/min (0 ot/min pod 5 % PWM)
Průtok vzduchu: 68,90 kubických stop za minutu | 117,06 m3/h
Statický tlak: 2 mmH2O?
Hladina hluku: 0,3 sonu
Větrák
Rám ventilátoru: Norma
Typ ovládání: PWM PST
Konektor: 4pinový konektor + 4pinová zásuvka
Ložisko ventilátoru: Fluidní dynamické ložisko
Provozní teplota okolí: 0—40 °C
Elektrické vlastnosti:
Typické napětí: 12 V DC
Spouštěcí napětí: 5 V
Proud | Napětí: 0,17 A | 12 V DC
Délka kabelu: 400 mm
Specifikace RGB
LED diody: 12 A-RGB LED diod
Konektor: 3pinový konektor 5 V-DI-GND
Proud / Napětí: 0,4 A/5 V
Kabel: Kabel 400 mm s 80mm sdíleným kabelem, černý
Velikost a hmotnost
Délka: 140 mm
Šířka: 140 mm
Výška: 27 mm
Hmotnost: 225 g
Obal
Šířka: 167 mm
Výška: 34 mm
Délka: 167 mm
Hmotnost: 0,297 kg
Číslo šarže: 4895213704083
UPC: 840033401890
ENG:

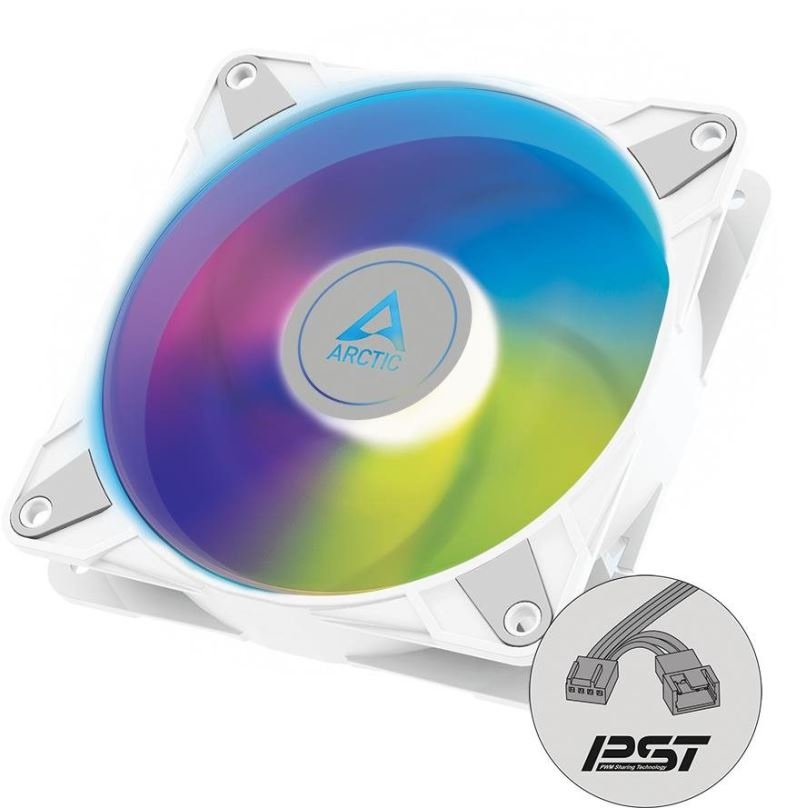

ARCITC P14 PWM PST A-RGB
Semi-passive 140 mm case fan with digital A-RGB in white
Addressable RGB for Full Colour Control
The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
ARCTIC's partner SignalRGB offers a comprehensive solution for synchronisation and individual configuration of the illumination.
0 dB Mode — Zero rpm
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.
Maximum Smoothness, Minimum Vibration
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.
Optimised for High Static Pressure
The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
200 to 1900 rpm Controlled via PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability.
General Specifications
Performance
Fan Speed: 200—1900 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow: 68.90 cfm | 117.06 m3/h
Static Pressure: 2 mmH2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0—40 °C
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current | Voltage: 0.17 A | 12 V DC
Cable Length: 400 mm
RGB Specifications
LEDs: 12 A-RGB LEDs
Connector: 3-Pin 5 V-DI-GND Connector
Current / Voltage: 0.4 A/5 V
Cable: 400 mm Cable with 80 mm Sharing Cable, Black
Size & Weight
Length: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 225 g
Packaging
Width: 167 mm
Height: 34 mm
Length: 167 mm
Weight: 0.297 kg
EAN: 4895213704083
UPC: 840033401890
DE:
ARCTIC P14 PWM PST A-RGB
Semi-Passiver 140 mm Gehäuselüfter mit digitalem A-RGB in weiß
RGB für volle Farbenkontrolle
Der P14 PWM PST A-RGB besitzt in der Lüfternarbe 12 digitale A-RGB LEDs. Diese sind autonom voneinander ansteuerbar und kompatibel zu den gängigen A-RGB-Standards führender Motherboard Hersteller. Der Lüfter kann somit direkt über den A-RGB-Mainboard-Anschluss oder über einen externen Controller vollumfänglich illuminiert und mit der Beleuchtung anderer Hardware synchronisiert werden.
0 dB Mode — Zero rpm
Die Geschwindigkeit des Lüfters kann via PWM bis zum Stillstand gedrosselt werden. Dies erlaubt einen lautlosen Betrieb im IDLE und garantiert gleichzeitig höchste Leistung bei Bedarf.
Maximale Laufruhe, minimale Vibration
Das Betriebsgeräusch des neu entwickelten ARCTIC Motors ist selbst bei geringster Drehzahl kaum wahrnehmbar. Zusätzlich besitzt der P14 PWM PST A-RGB gummierte Auflageflächen und reduziert so hörbare Schwingungen auf ein Minimum.¨
Optimiert für hohen statischen Druck
Der P14 PWM PST A-RGB arbeitet mit einem fokussierten Luftstrom und einen hohen statischen Druck. Der Lüfter garantiert damit eine äußerst effiziente Kühlung, auch bei erhöhtem Luftwiderstand und ist daher für eine Nutzung an Kühlkörpern, Radiatoren sowie auch bei Lochblenden und Filtern geeignet.
200 bis 1900 U/Min via PWM PST geregelt
Mit einem breiten Drehzahlbereich und der innovativen PWM Sharing Technology (PST), kann die Lüftergeschwindigkeit des P14 PWM PST A-RGB synchron mit allen anderen Lüftern gesteuert werden. Dies reduziert die Geräuschentwicklung auf ein Minimum und garantiert gleichzeitig höchste Kühlleistung.
Hochwertiges Gleitlager
Dank einer in Deutschland entwickelten Kombination von Legierung und Schmiermittel wird die Reibung innerhalb des Lagers reduziert und eine höhere Effizienz erzielt. Auf diese Weise entwickelt sich weniger Wärme, es entstehen weniger Lagergeräusche und die Lebensdauer des Lüfters wird verlängert.
Qualität auf die du dich verlassen kannst
Um die Langlebigkeit unserer Produkte gewährleisten zu können, führen wir Langzeittests unter unterschiedlichen, teils sehr widrigen Bedingungen durch. Auf diese Weise lernen wir, wie wir unsere Produkte dauerhaft für unsere Kunden verbessern können. Zusätzlich geben uns die hervorragenden Resultate der Langezeiterprobung die Sicherheit, dass unsere Produkte nicht nur in ihrer Qualität, sondern auch in ihrer Langlebigkeit herausragend sind. Eine Sicherheit, die wir gerne an unsere Kunden weitergeben.
Technische Daten & Manual
Allgemeine Spezifikationen
Leistung
Geschwindigkeit: 200—1900 rpm PWM-gesteuert (0 rpm unter 5 % PWM)
Luftstrom: 68,90 cfm | 117,06 m3/h
Statischer Druck: 2 mmH2O
Geräuschpegel: 0,3 Sone
Lüfter
Lüfterrahmen: Standard
Kontrolltyp: PWM PST
Anschluss: 4-Pin Connector + 4-Pin Anschluss
Lüfterlager: Hydrodynamisches Gleitlager
Betriebsumgebungstemperatur: 0—40 °C
Elektrische Eigenschaften
Typische Spannung: 12 V DC
Anlaufspannung: 5 V
Stromstärke | Spannung: 0,17 A | 12 V
Kabellänge: 400 mm
RGB Spezifikationen
LEDs: 12 A-RGB LEDs
Anschluss: 3-Pin 5V-DI-GND Anschluss
Strom | Spannung: 0,4 A | 5 V
Kabel: 400 mm Kabel mit 80 mm Sharing-Splitter, schwarz
Größe & Gewicht
Länge: 140 mm
Breite: 140 mm
Höhe: 27 mm
Gewicht: 210 g
Verpackung
Breite: 167 mm
Höhe: 34 mm
Länge: 167 mm
Gewicht: 0.297 kg
EAN: 4895213704083
UPC: 840033401890
