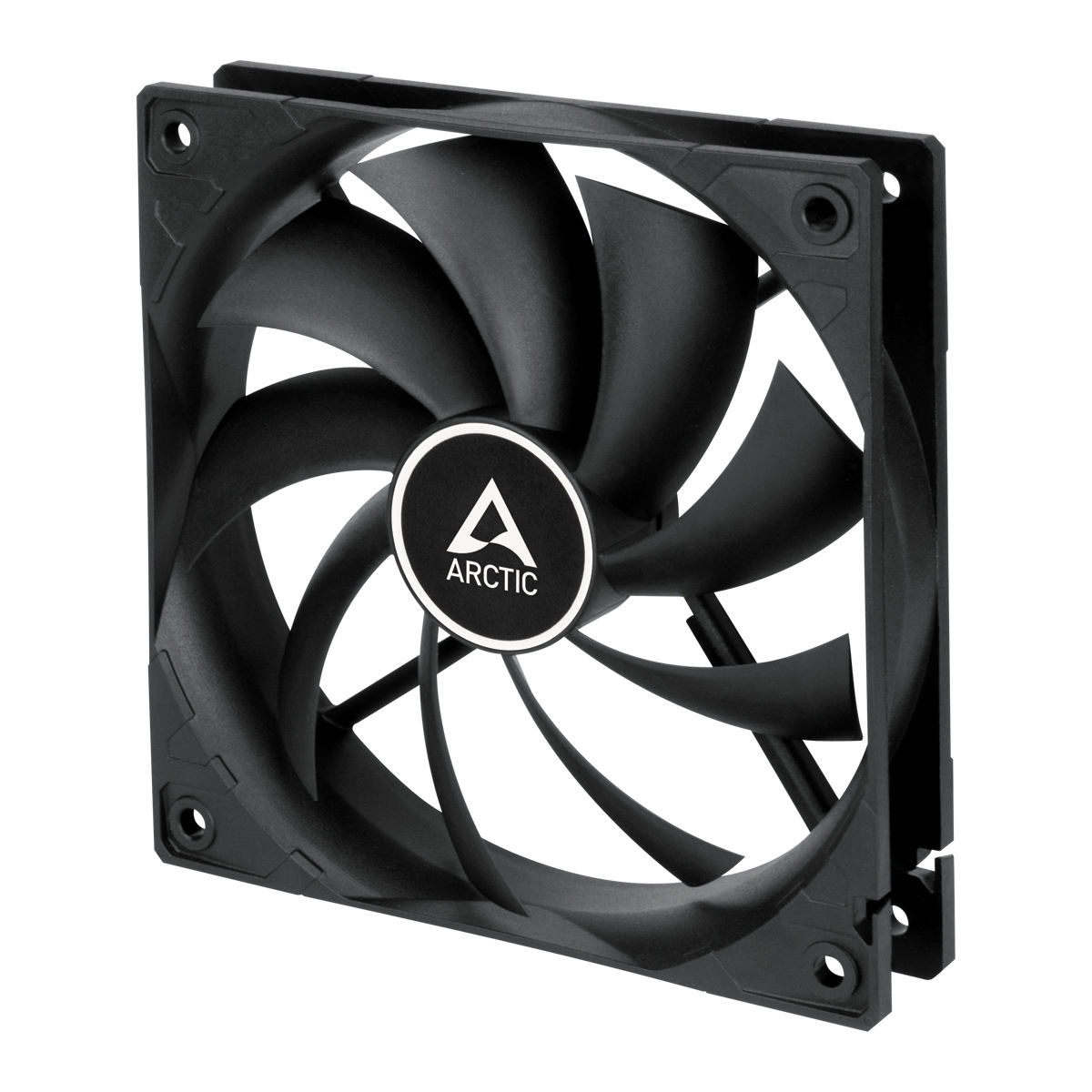

ARCTIC F12 PWM (black) je černý ARCTIC ventilátor 120x120x25mm s 230 - 1350 rpm a 53 CFM/ 90.1 m3/h.
LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
PERFECT CASE FAN REGULATION WITH PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
TWO WAY INSTALLATION
- Blow warm air out of the case
- Draw cool air into your case
TECHNICAL SPECIFICATIONS
General data
Performance
Fan Speed: 230 - 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1,00 (mm/H2O)
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Controll Type: PWM
Connector: 4-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current: 0.24 A
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 105 g
Packaging
Width: 123 mm
Height: 123 mm
Length: 27 mm
Weight: 0.14 kg
